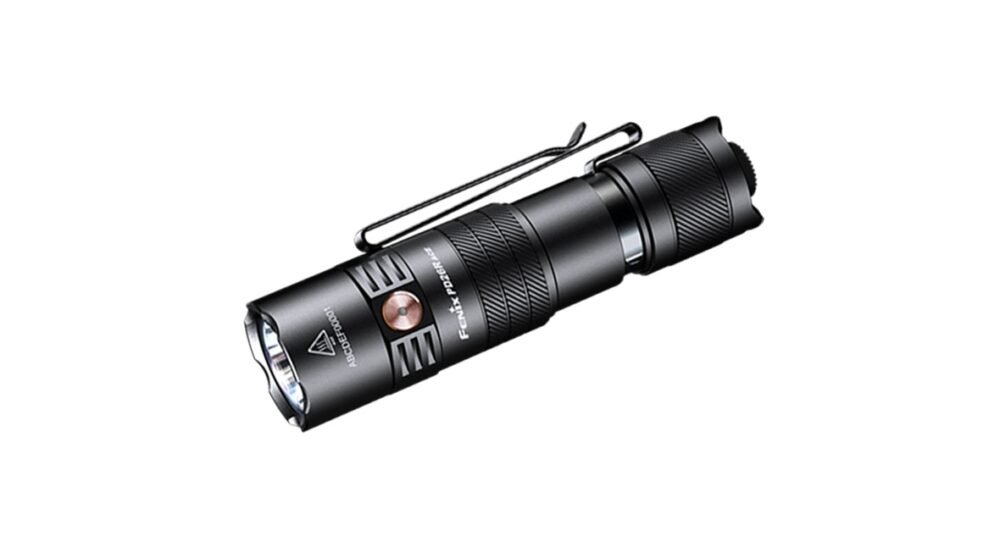

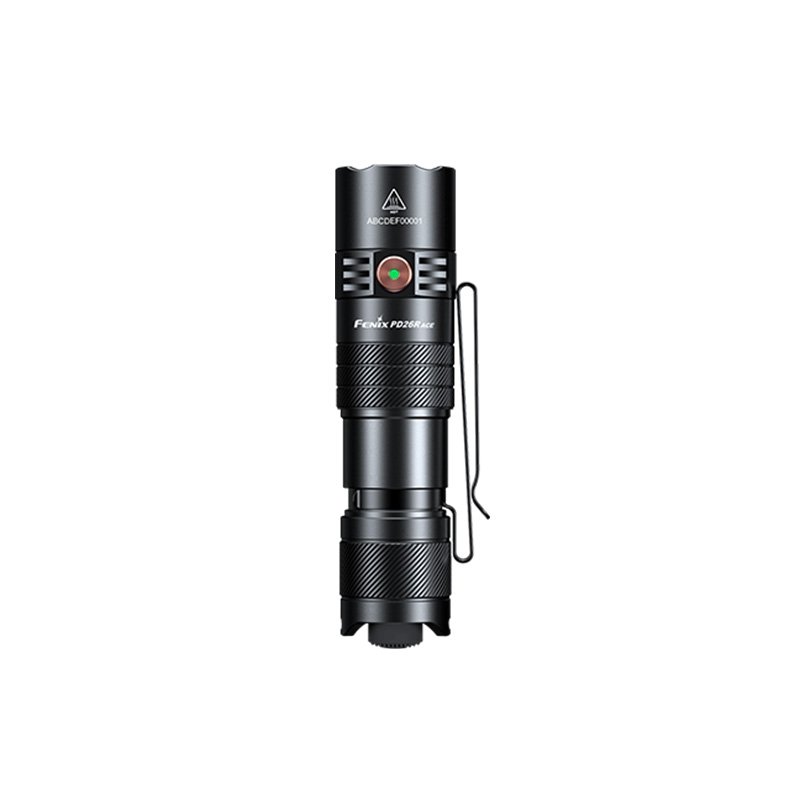

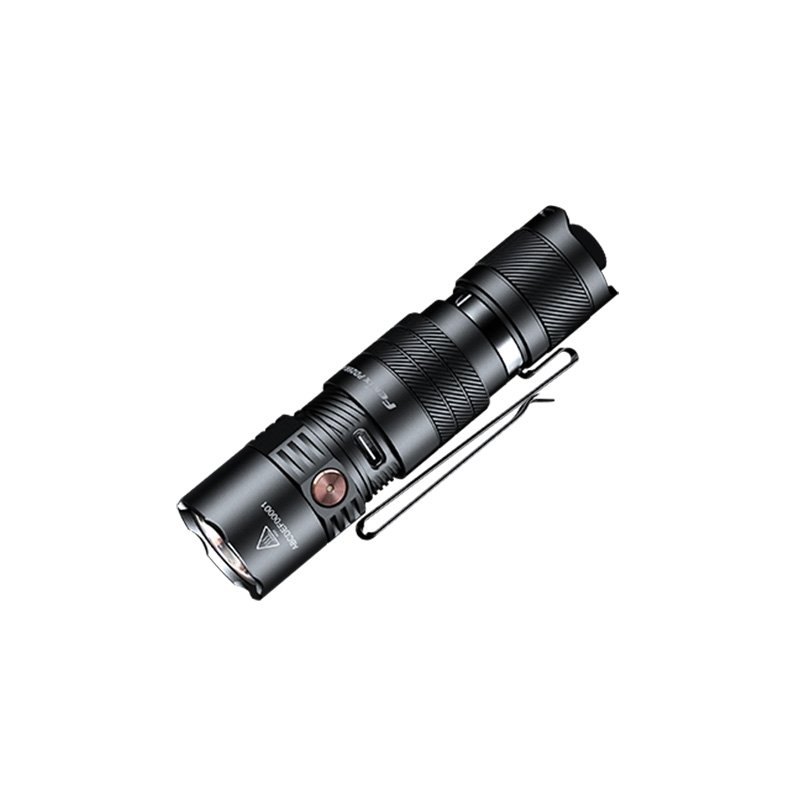

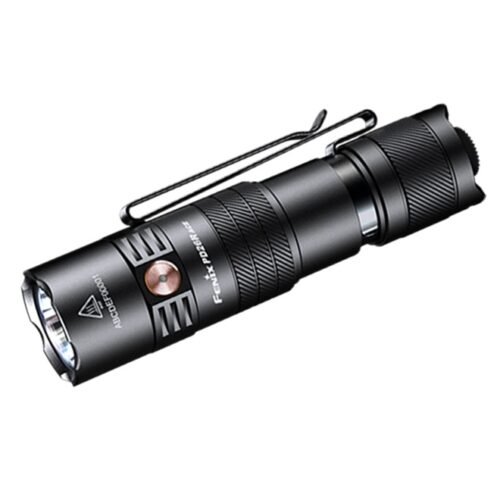

FENIX Rechargeable LED Flashlight PD26R ACE, 1300 lm – Black

Technical Specifications

• Output: 1300 lm
• Beam distance: 354 m (31,404 cd)

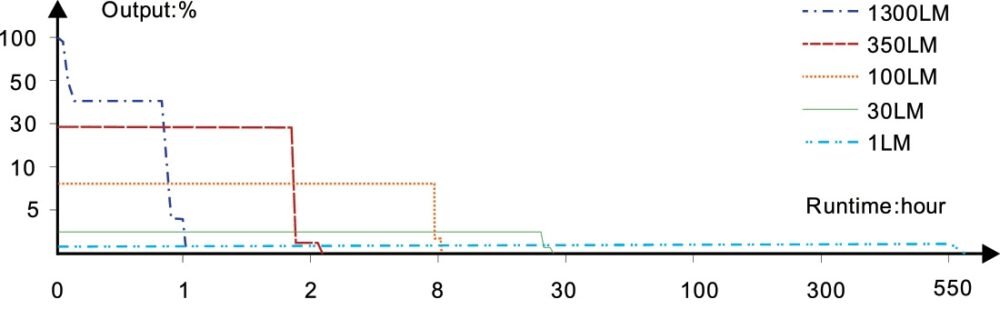

• Max runtime: 556 h
• Modes: 7 (Turbo, High, Mid, Low, Eco, Strobe, SOS)
• LED: Luminus SFT-25R
• Color temperature: 5500–6500 K (daylight white)
• Power supply: 1× Li-ion 18350 (1600 mAh, included)
• Charging: USB-C, approx. 2 h
• Material: Aircraft-grade aluminum, Type III hard anodized

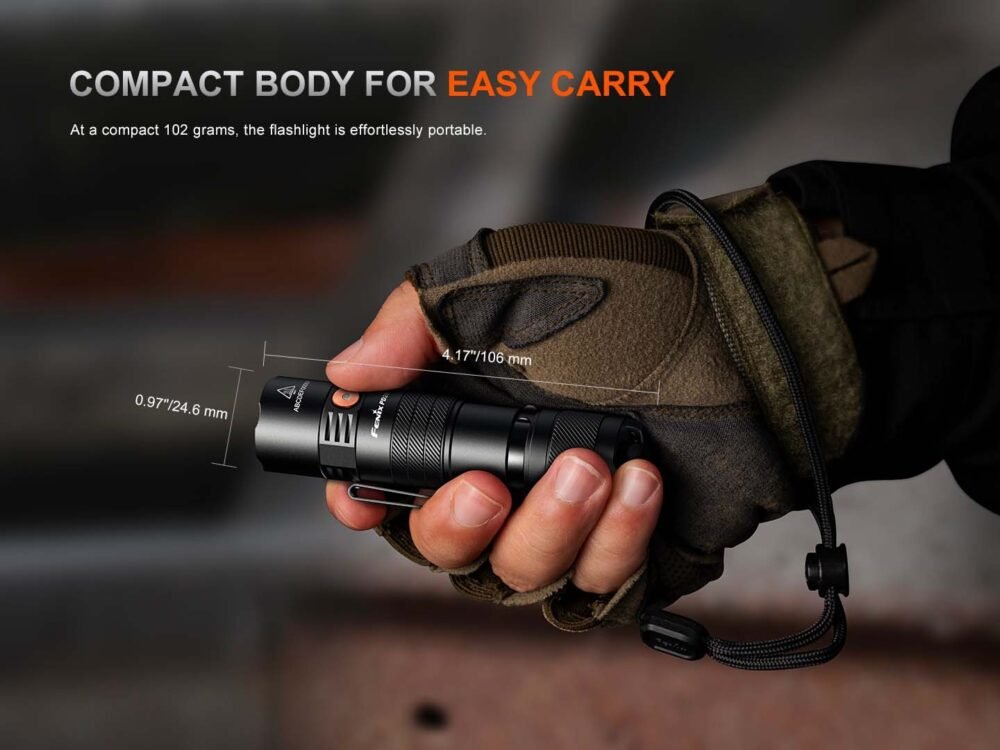

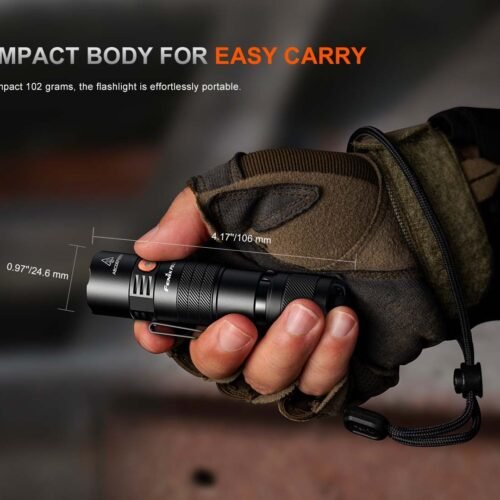

• Dimensions: 106 × 24.6 × 26.6 mm
• Weight: 102.3 g (with battery)
• Water resistance: IP68 (2 m submersion)
• Impact resistance: 1 m
• Other features: Digital regulation, mode memory, overheat protection

Usage

1. A protective insulator may be placed on the battery inside the flashlight. Remove it before first use.

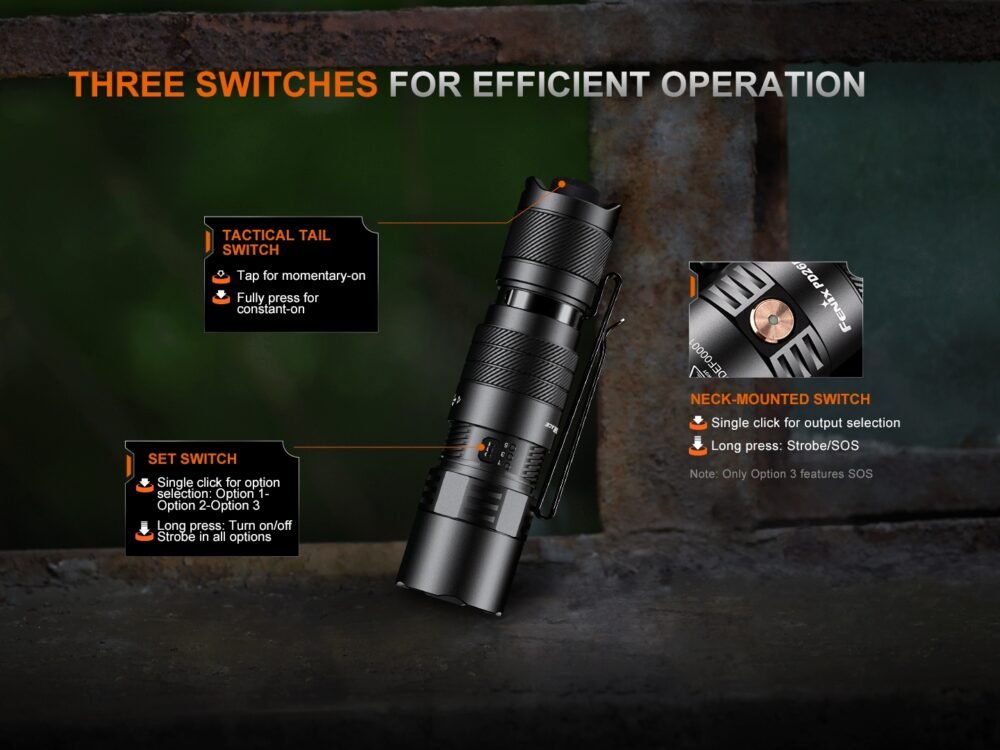

2. Press the tactical tail switch to turn on, or half-press for momentary activation.
3. Use the side switch near the head to cycle through constant lighting modes during operation.
4. Hold the side switch for ~0.5 s to activate strobe.
5. If you are in Setting 3 (outdoor mode), pressing again will switch to SOS.
6. Hold the side switch again to return to constant modes.
7. The number of modes available depends on your selected preset; strobe can be disabled entirely if desired.

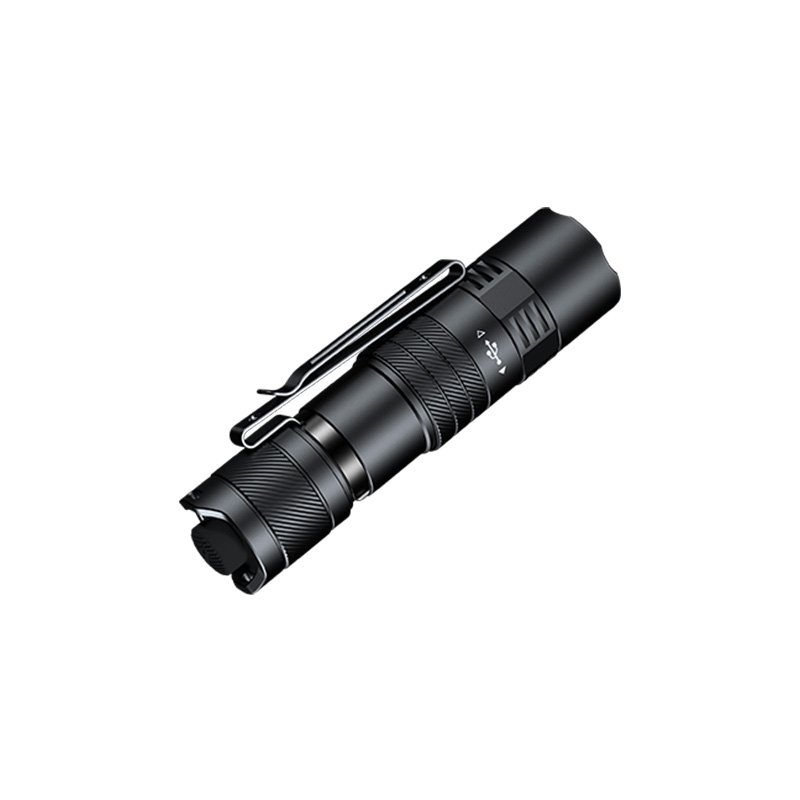

8. Unscrew the protective ring under the head to reveal the charging port and connect the USB-C charging cable. After charging, tighten the ring again. During charging, the side indicator glows red and turns green when fully charged. Normal charge time is about 2 hours.

Lighting Preset Settings

• The SET function lets you choose between 3 preset mode groups as shown in t..
