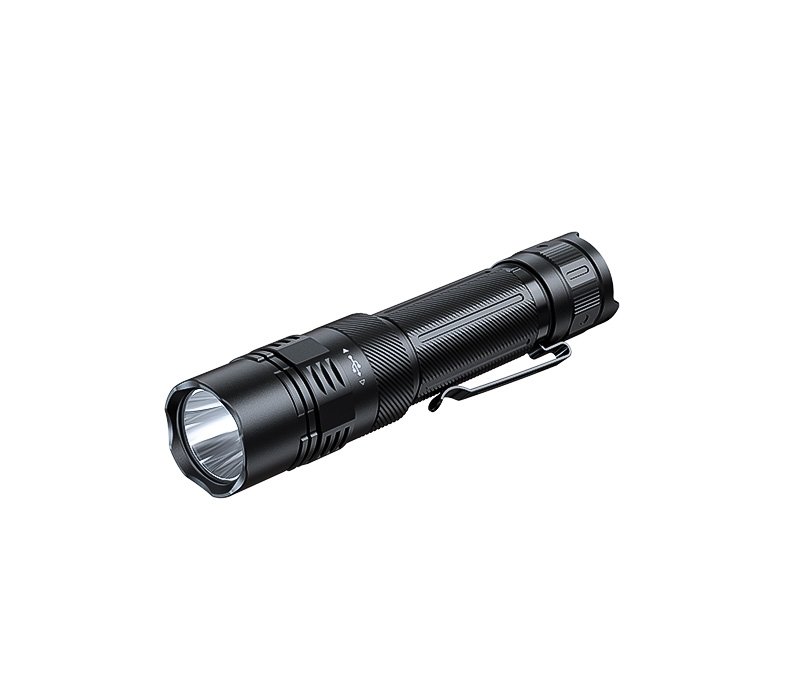

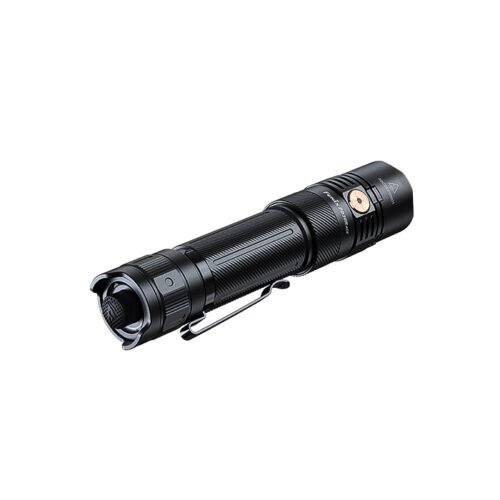

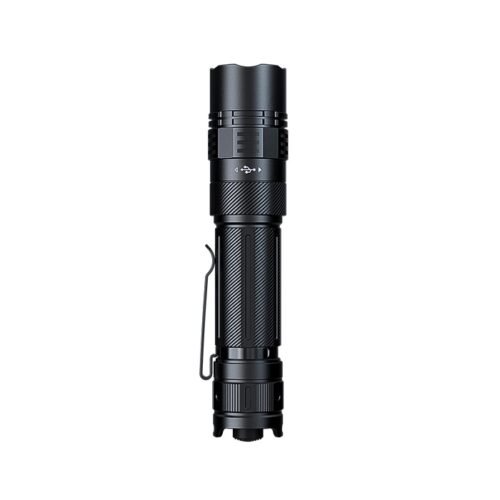

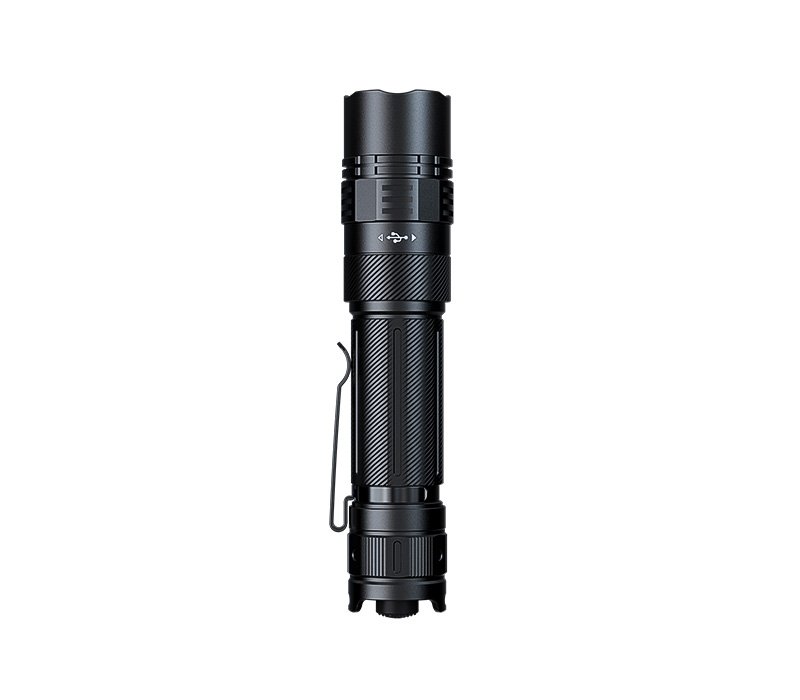

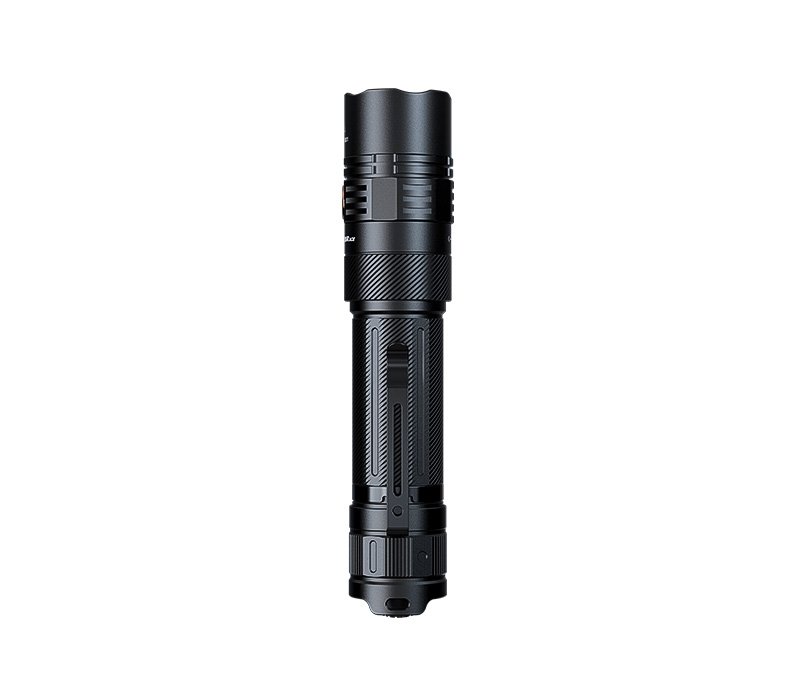

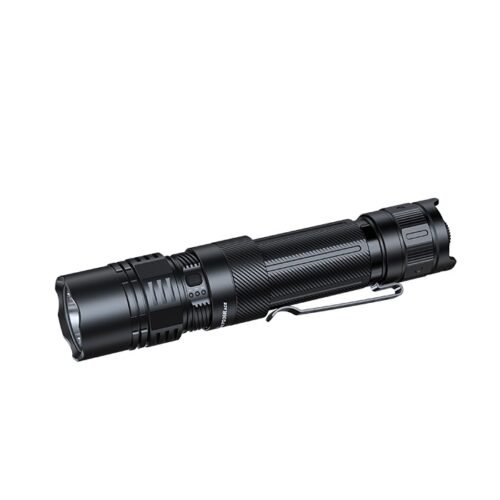

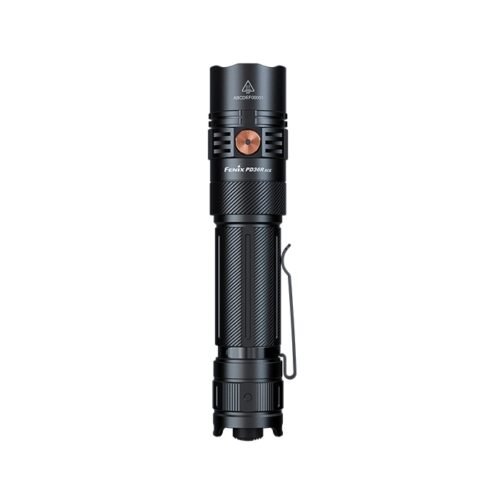

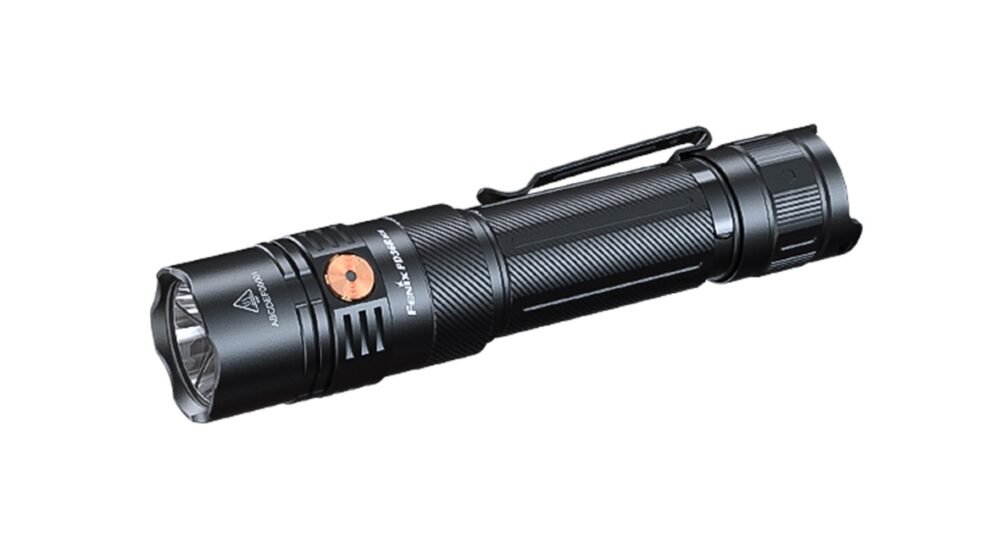

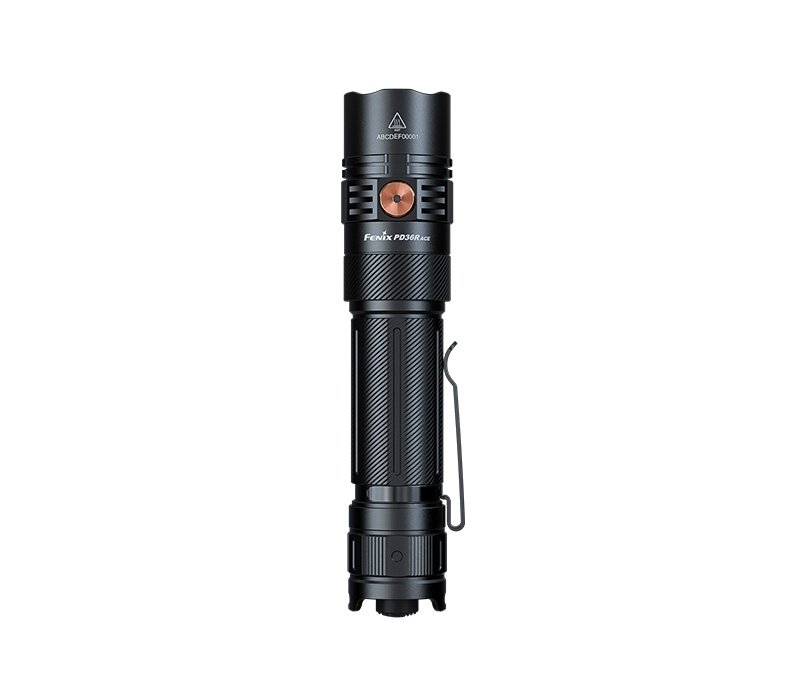

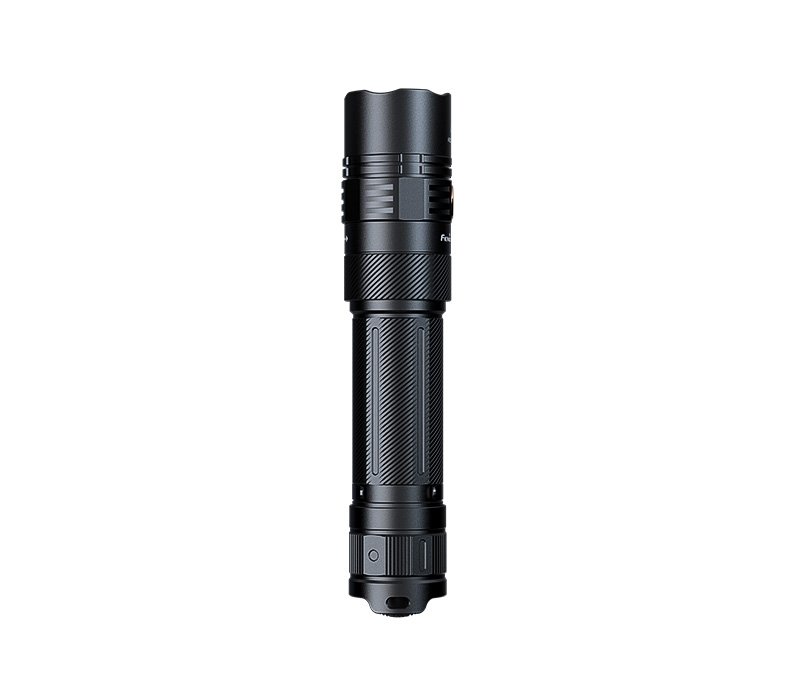

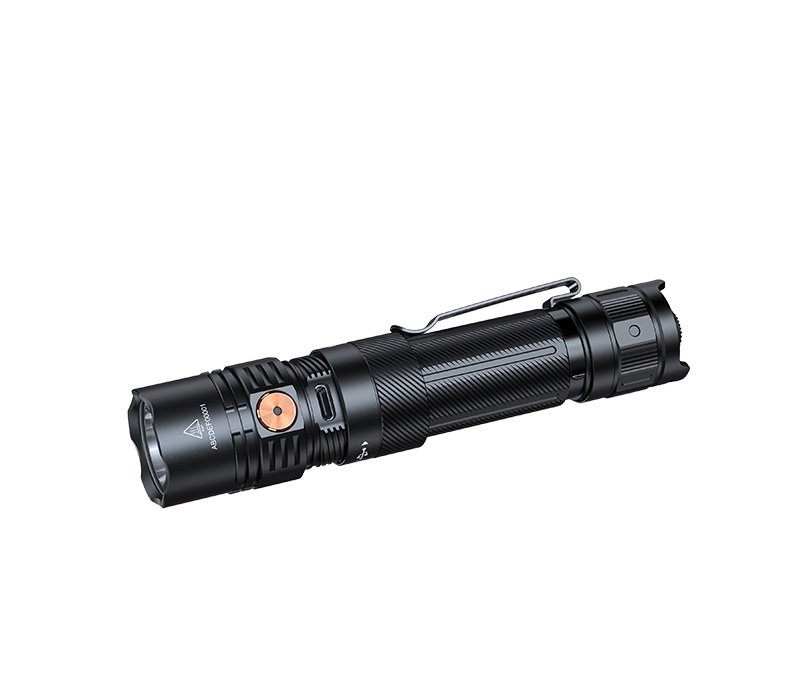

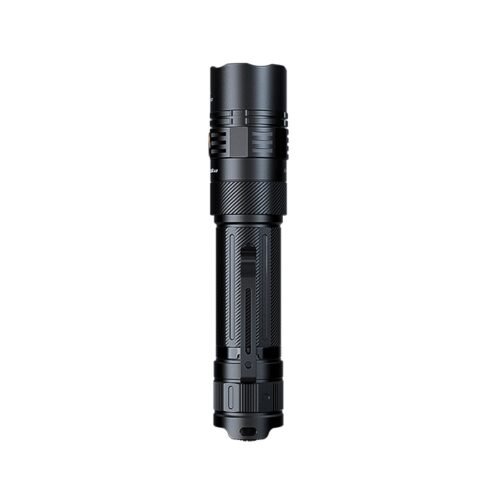

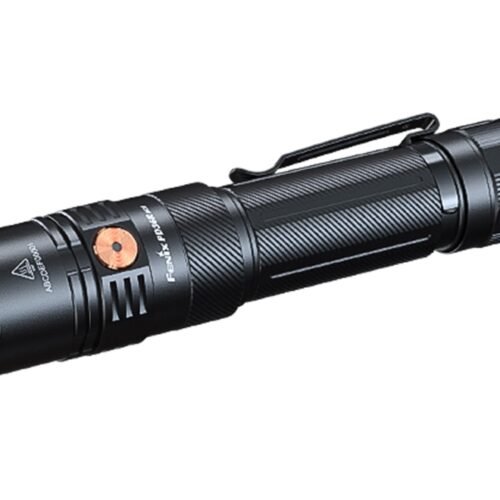

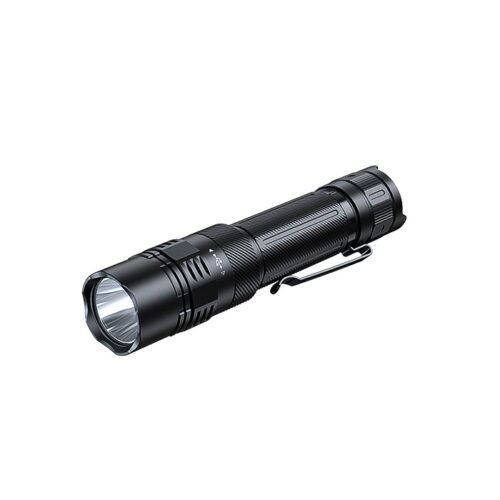

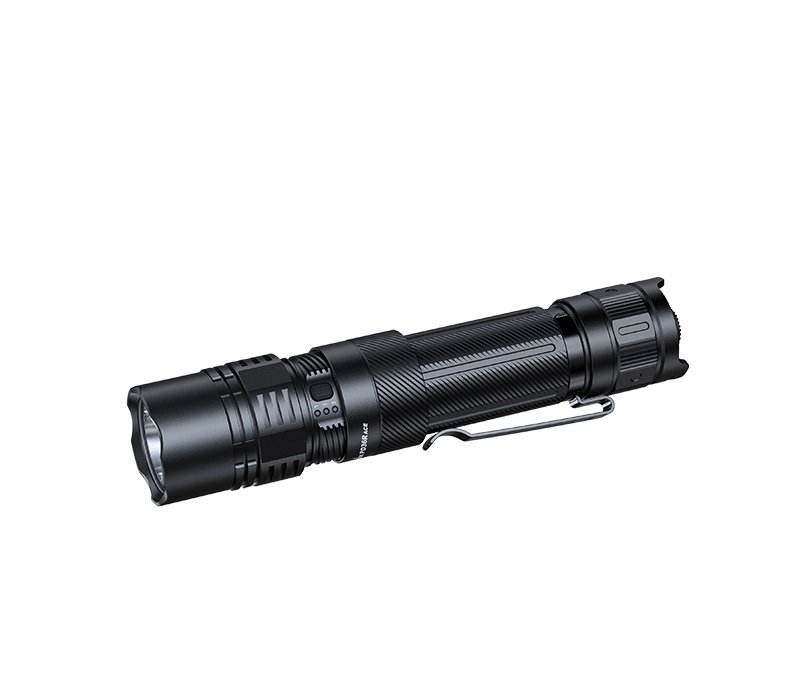

FENIX Rechargeable LED Flashlight PD36R ACE, 3000 lm – Black

Technical Specifications

• LED source: Luminus SFT-70 Gen2, lifespan 50,000 h
• Output: 3000 lm
• Beam distance: 415 m (43,181 cd)
• Modes: 7 (including SOS and strobe)

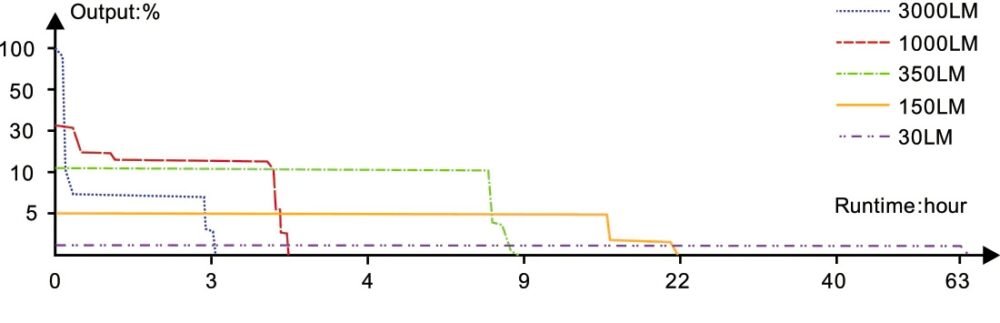

• Runtime: up to 63.45 h (eco)
• Battery: 1× Li-ion 21700 (5000 mAh, included)
• Charging: USB-C (under collar)
• Dimensions: 146 × 26 × 30 mm
• Weight: 181.6 g (with battery)
• Material: Aircraft-grade aluminum, Type III anodized finish
• Waterproofing: IP68 (2 m for 30 min)
• Impact resistance: 1 m
• Other features: Tactical tail switch, battery indicator, detachable steel clip, AR-coated lens

Usage

1. The battery may have an insulating film from the factory. Remove it before first use.
2. Press the tactical tail switch to turn on; half-press for momentary on.
3. Use the side button near the head to cycle through brightness modes.
4. Hold the side button for 0.5 seconds to activate strobe.
5. When in Setting 3 (outdoor), pressing again activates SOS.
6. Hold the side button again to return to steady modes.
7. The number of accessible modes depends on your profile selection; strobe can be disabled if needed.
8. Unscrew the collar under the head to reveal the USB-C port, then connect the charging cable. The indicator glows red while charging and green when full. Charging takes about 3 hours.

Lighting Profiles

• The SET function offers 3 selectable profiles:
• Loosen the collar to access the hidden SET button.
• While on, press SET to cycle: Setting 1 – Tactical (Turbo only) → Setting 2 – Duty (3 modes) → Setting 3 – Outdoor (5 modes).
