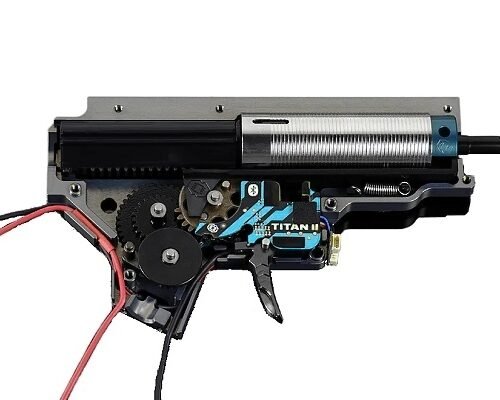

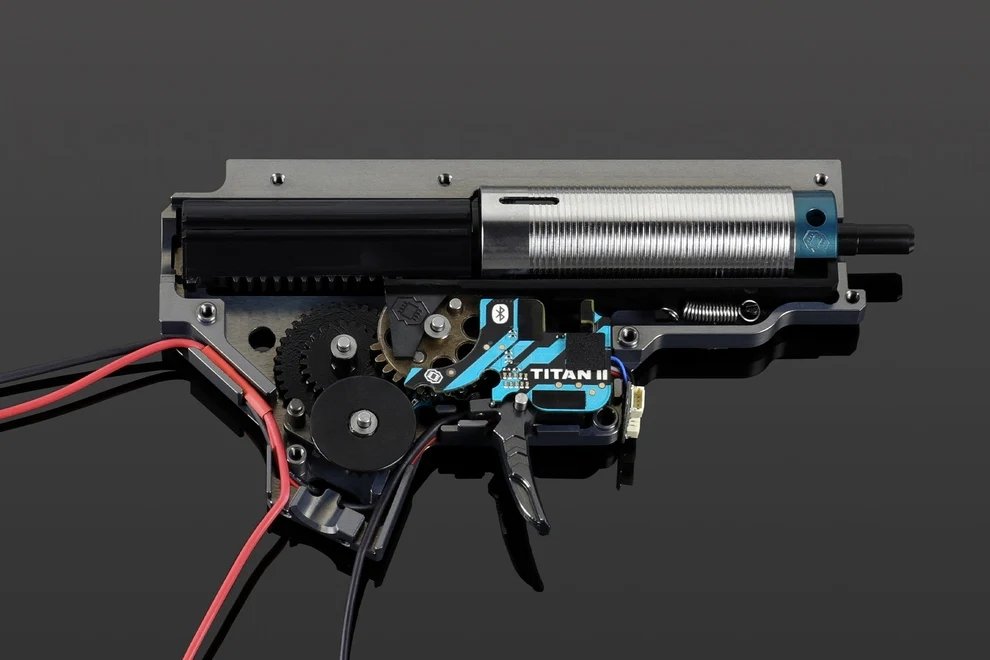

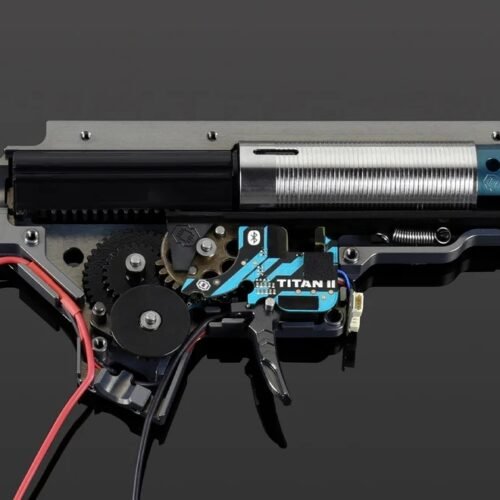

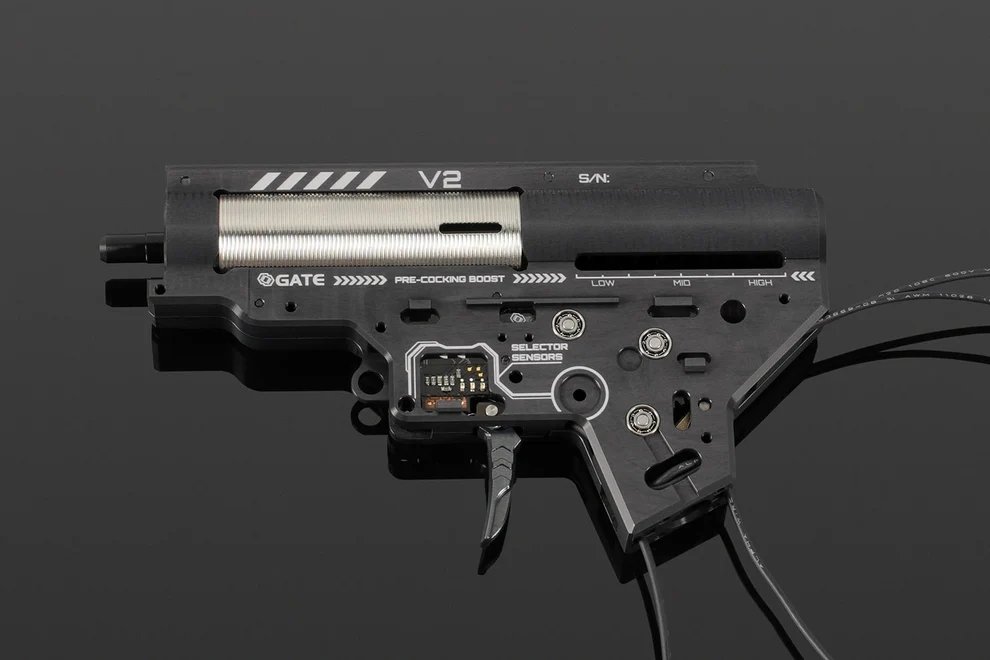

GATE Completed EON CNC Gearbox and TITAN II Bluetooth(R) EXPERT V2 (1.8 J) – Rear Wiring

Technical Specifications

• Output: Approx. 1.8 J (135 m/s)
• Gearbox type: Version 2 (V2)

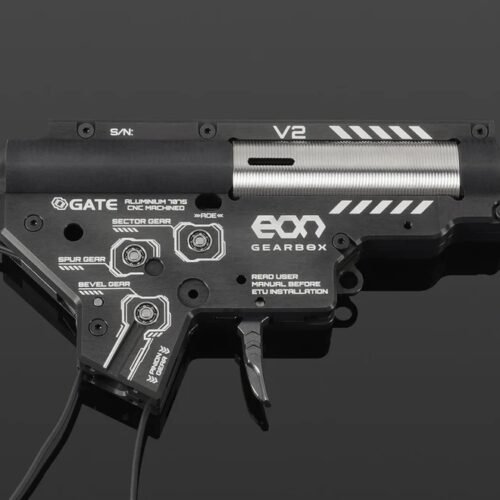

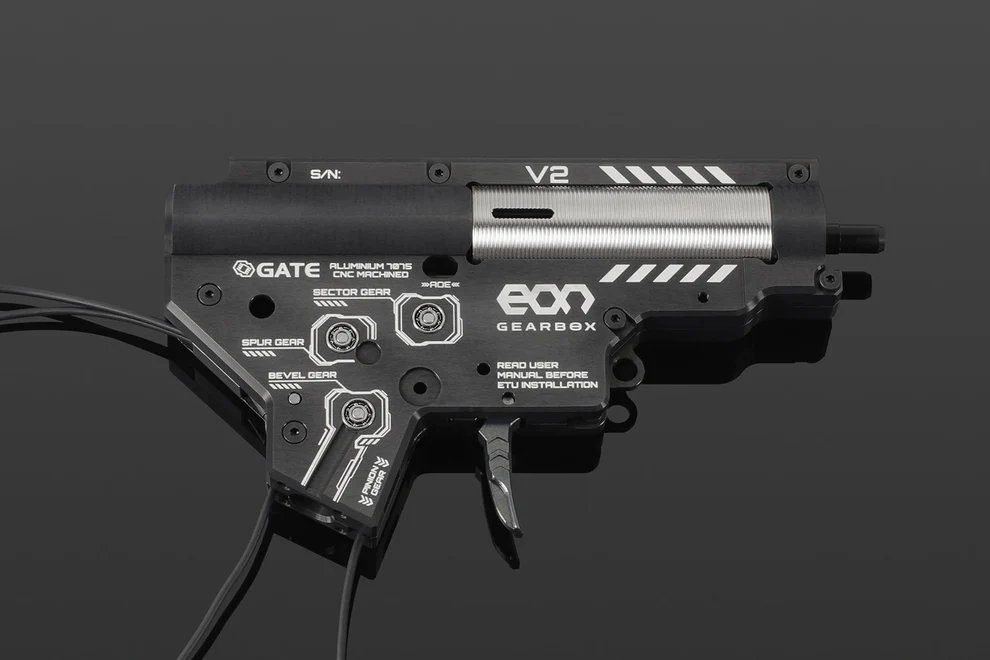

• Gearbox shell: CNC 7075 T6 aluminum
• Gears: CNC high-speed gear set, ratio 13:1
• Piston: Reinforced polycarbonate with CNC steel teeth
• Cylinder a piston heads: EON Protector cylinder head plus High Speed piston head
• Nozzle: CNC POM, length 21.25 mm
• Bearings: Reinforced 8 mm ball bearings
• Cycle detection: Optical, with advanced diagnostics via GATE Control Station
• Connectivity: Bluetooth(R) 5.2 LE
• Wiring: Buffer tube
• Connector: T-Dean

Package Contents

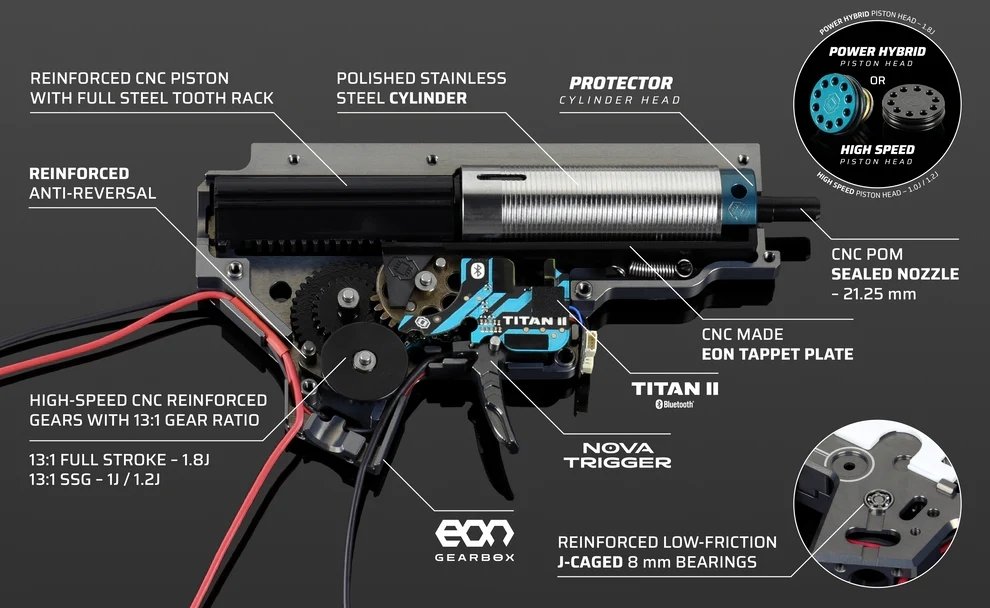

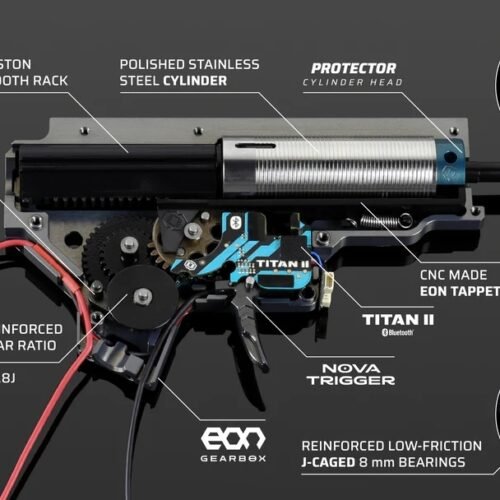

• Fully assembled CNC EON V2 gearbox
• TITAN II Bluetooth(R) EXPERT unit
• Nova Trigger
• High-speed 13:1 gear set (full stroke)
• Reinforced CNC piston with steel teeth
• EON Protector cylinder head
• EON High Speed piston head
• CNC POM nozzle (21.25 mm)
• Ported steel cylinder
• EON tappet plate
• Reinforced anti-reversal latch
• Reinforced 8 mm ball bearings

Warning

• The QSC spring guide is sealed; if the seal is broken, warranty claims for gearbox and internal damage cannot be accepted, as the installation of a stronger spring cannot be ruled out.
• Actual output may vary slightly depending on BB weight, inner barrel length, and other factors.
• For proper function, we recommend using a quality motor and a correctly matched inner barrel according to cylinder volume (approx. 250–430 mm).
• The GATE Control Station application can be downloaded from the official GATE website.
