JeffTron Wiring for LEVIATHAN V3 Optical – Front

Wiring for Leviathan V3 Optical

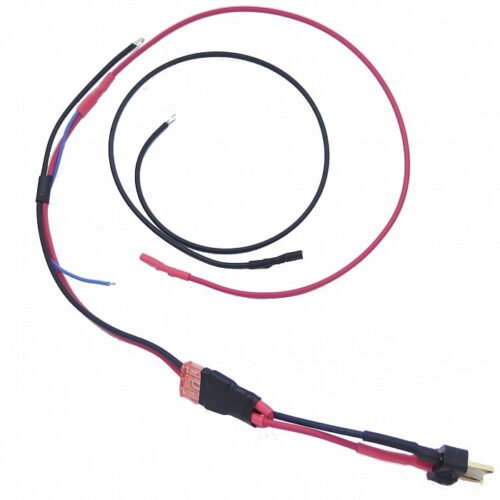

Replacement wiring for Leviathan V3 Optical processor units by JeffTron. The set consists of power wires with a cross-section of 1.5 mm² (AWG16) and a signal wire with a cross-section of 0.34 mm² (AWG22), all with thin and rigid PTFE insulation. The power wires have an outer diameter of only 2.10 mm and the blue signal wire 1.30 mm. Thanks to these parameters, the wiring is easy to install even in tight spaces inside the gun. The cables are stiff and fit perfectly into the grooves of the gearbox without slipping out.

Technical Specifications

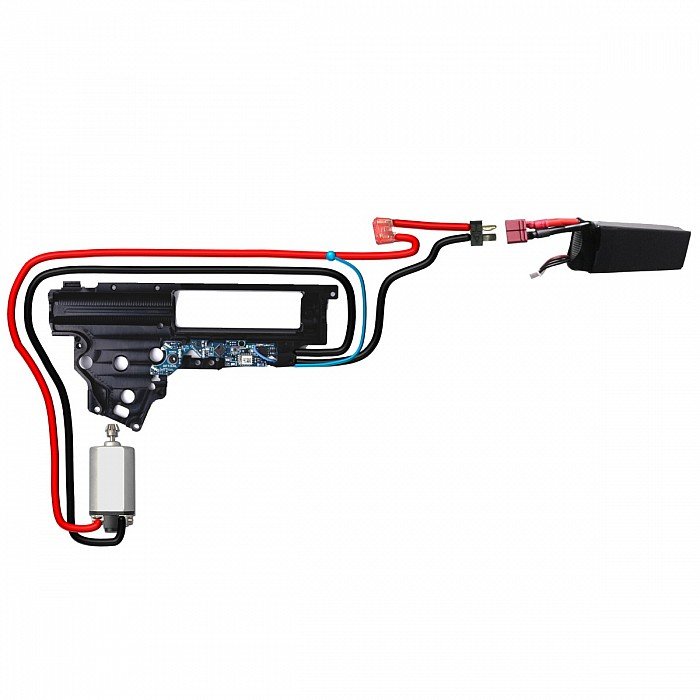

Wiring layout: Top wiring (for AK-type guns)
Insulation material: Teflon (PTFE)
Wire diameter: 2.10 mm (AWG16), 1.30 mm (AWG22)
Compatibility: Leviathan V3 Optical
Connector: T-Dean

Package Contents

Complete wiring for Leviathan V3 Optical with top-wired layout
Installation manual (requires advanced soldering)
