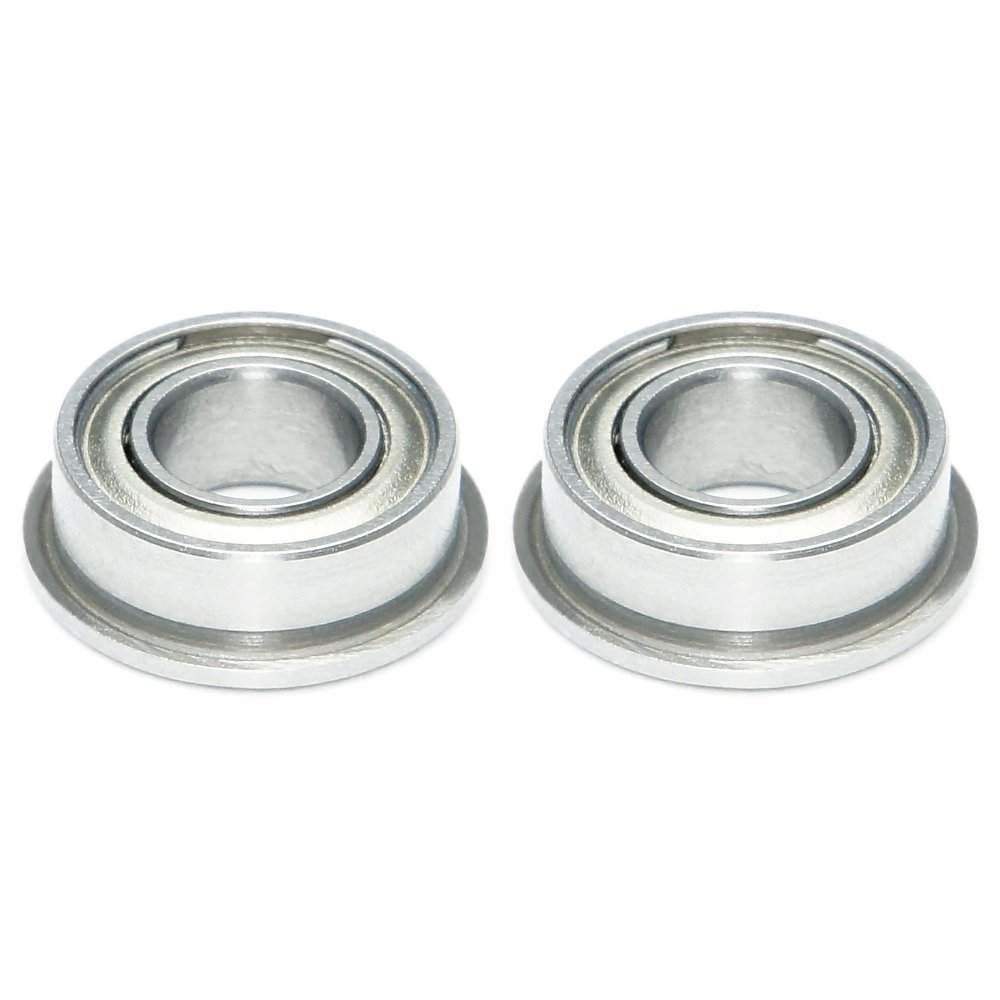

MAXX Flanged Steel Ball Bearing 4x8x3mm – 2PCS

Flanged Ball Bearings are to reduce rotational friction and support radial loads. Ideal for precision work with close tolerances suitable for building models and applications. The flanged ball bearings have a flanged outer ring to facilitate location in housing axially and eliminate the need for housing shoulders. Made of heat-treated Chrome steel.

Bore Diameter: d=4mm

Outer Diameter: D=8mm

Width: B=3mm

Flange Diameter: Df=9.2mm

Flange Width: Bf=0.6mm

Inner Race: Di=5mm

Outer Race: Do=6.8mm

Radius: R=0.15mm

Dynamic Load Rating: C=30kgf

Static Load Rating: Co=12kgf

Bearing Type: Flanged Deep Groove Ball Bearing

Closure: Metal Shields

Material: Chrome Steel (SAE52100)
