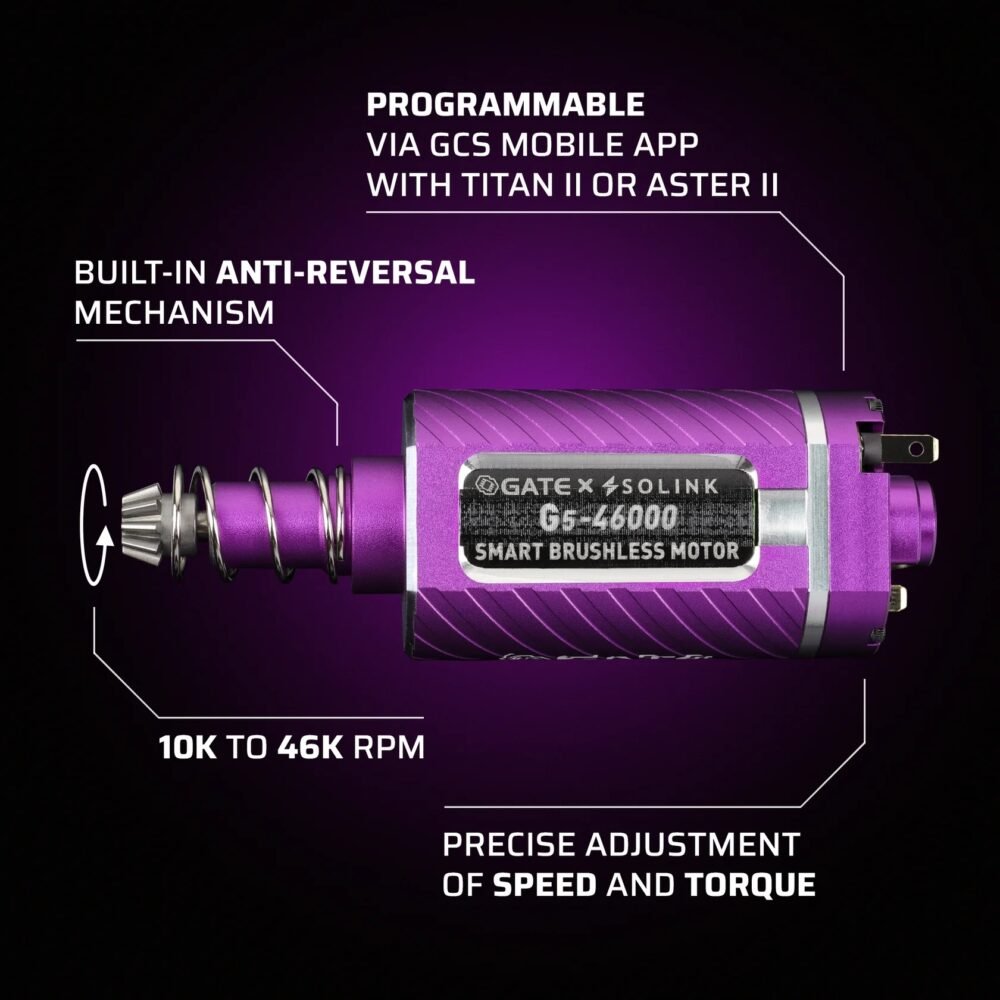

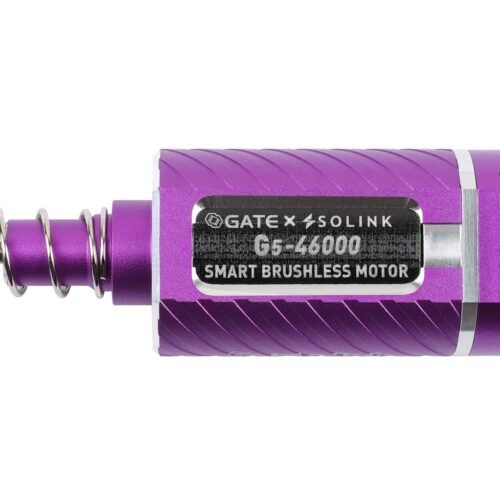

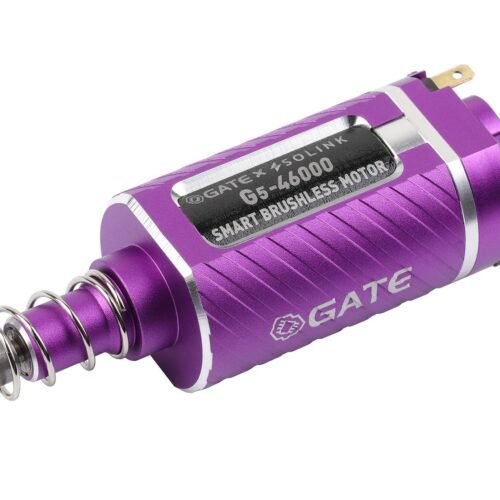

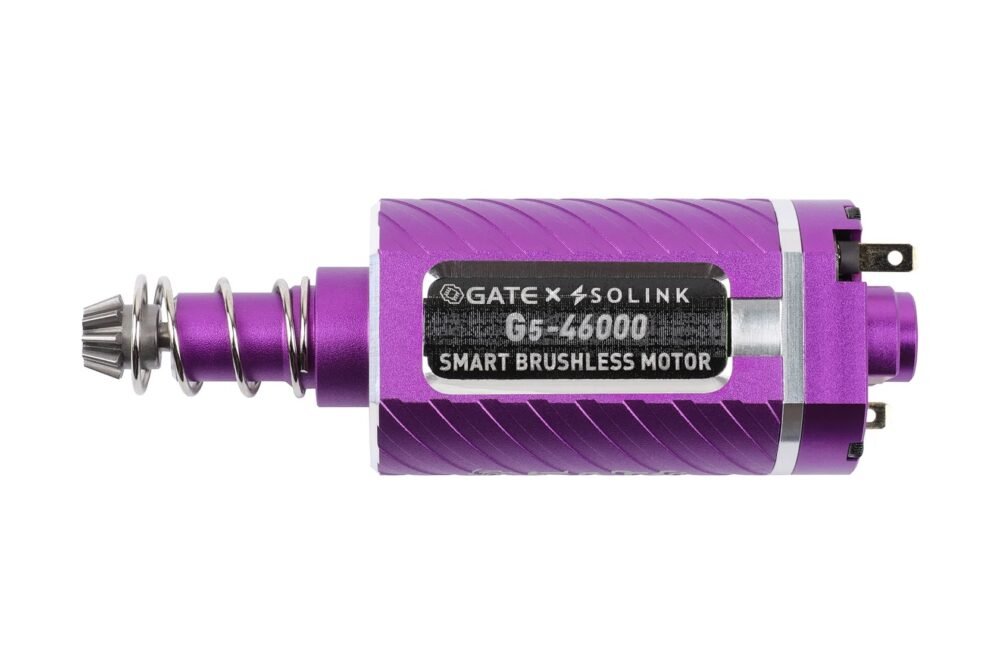

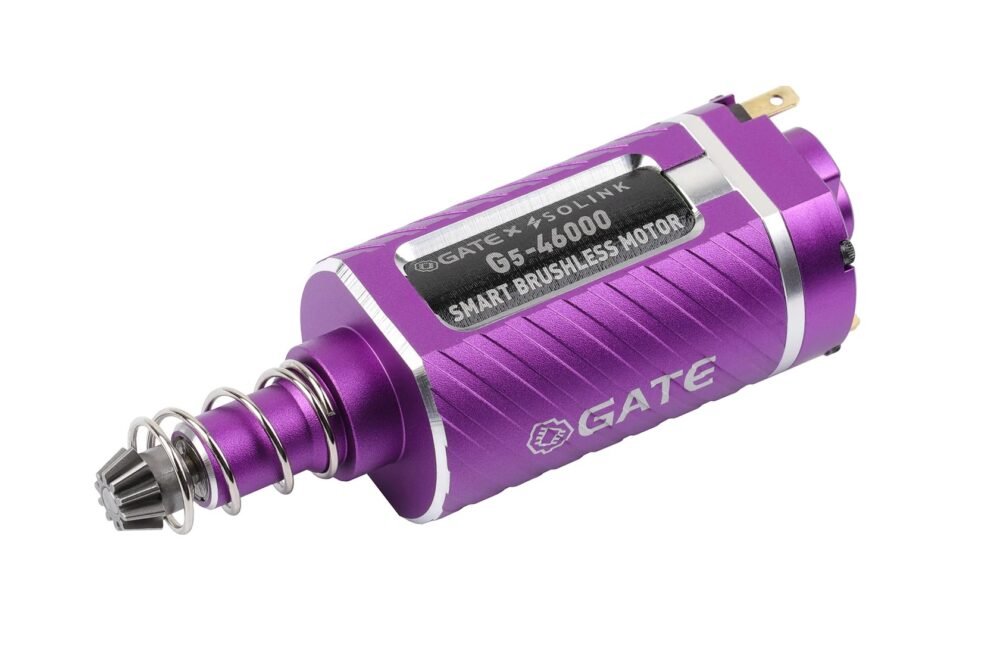

GATE / Solink G5 Smart Brushless Motor, 46 RPM – Long

Technical Specifications

• Operating voltage: 6 – 16.8 V
• Dimensions: 88.5 x 29.5 x 25 mm
• Weight: 141 g
• No-load current draw: 3.2 A (at 45,800 RPM)
• Maximum efficiency: 75.9procent
• Maximum power output: 519 W
• Torque: 2334 g/cm
• RPM range: 10,000 – 46,000 RPM

Programming Compatibility

• Smart programming functions supported by: TITAN II Bluetooth, ASTER II Bluetooth by GATE
• Standard use as a brushless motor (without RPM settings): ASTER SE for V2, ASTER SX for V2, TITAN V2 (1st gen), JeffTron Leviathan (enable Brushless mode), T238, and other V2 ETU units

Package Contents

• G5 SMART Programmable Brushless Motor
