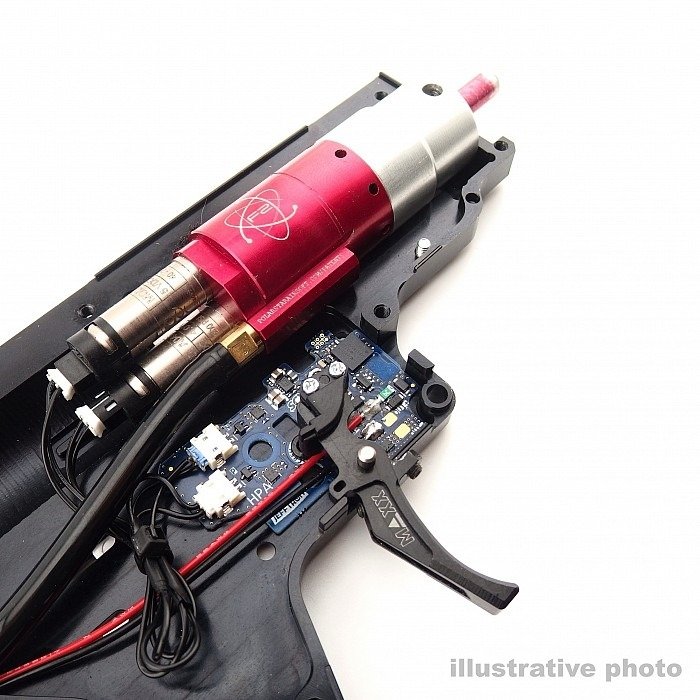

JeffTron Scylla HPA V2 Control Unit – Wiring to the Stock / Pistol Grip

Gearbox Compatibility

Scylla V2 is designed for Version 2 gearboxes and is compatible with the following platforms:

• M4, M16, HK416, AR15 (TM-standard Version 2 gearbox)
• SR25 (TM-standard Version 2.5 gearbox)
• ICS SSS Version 2 gearbox
• MP5, G3 (TM-standard Version 2 gearbox)
• G a G G2 Version 2 gearbox
• M249 with a TM-standard Version 2 gearbox
• M4 rifles manufactured by Krytac
• M107 BARRETT manufactured by Snow Wolf

Not Compatible With:

• KWA Version 2.5 gearbox
• S a T or Arcturus Version 2 gearbox
• Ares Amoeba Version 2 gearbox
• APS eSilver Edge Version 2 gearbox
• Version 2 gearboxes equipped with a microswitch trigger

Technical Specifications

• Type: HPA Control Unit
• Power Consumption: 1.5 mA (Standby Mode)

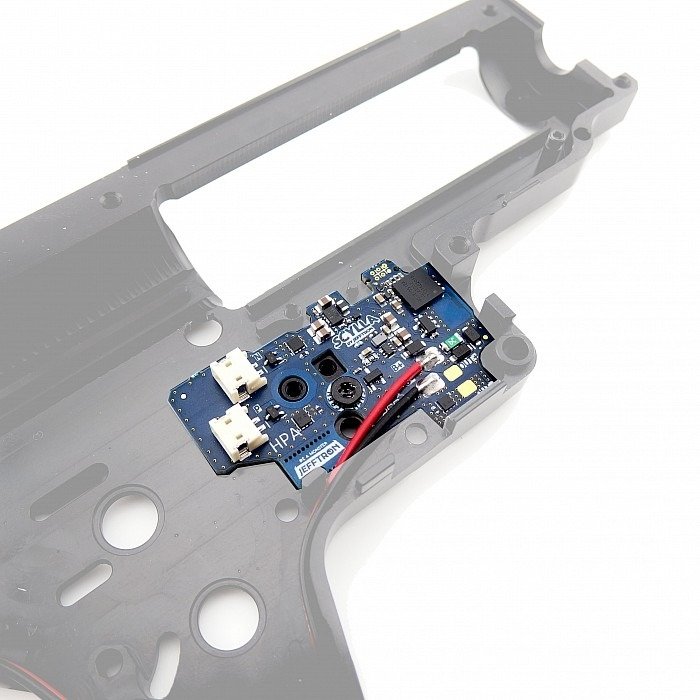

• Installation: Version 2 Gearbox
• Compatible HPA Systems: PolarStar F2, F1, JACK, Wolverine Inferno Gen2 and other systems using 5V solenoids (single or dual, open bolt or closed bolt)
• Connectivity: Wireless (iOS / Android Application)
• Output: External Accessory Port
• Battery Connector: JST
• Wiring Configuration: Rear Wiring to Stock / Buffer Tube

Package Contents

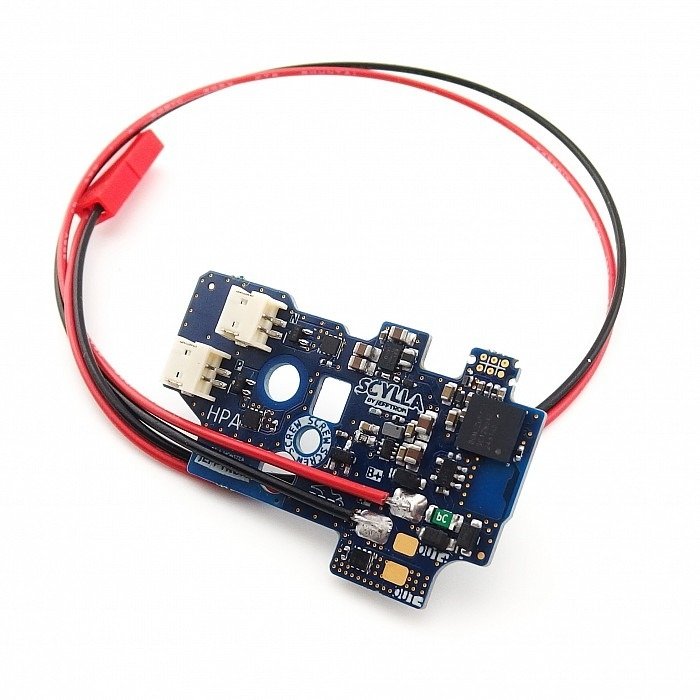

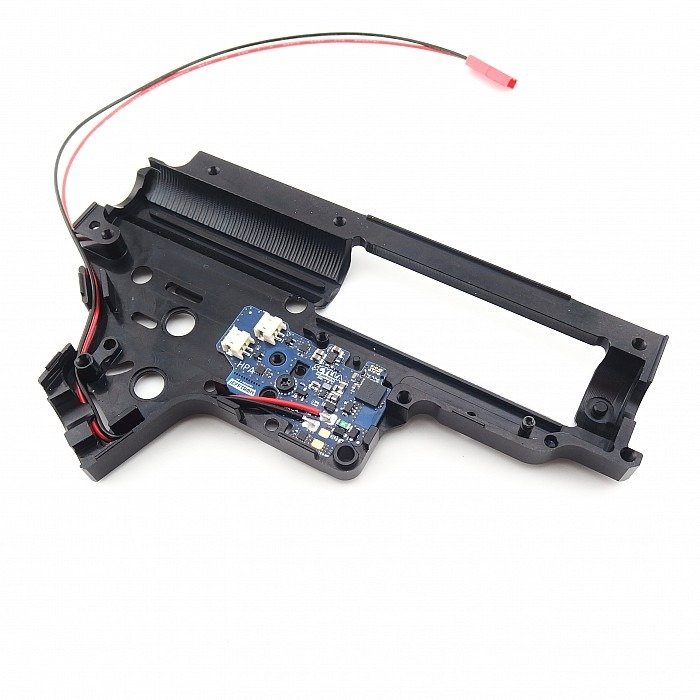

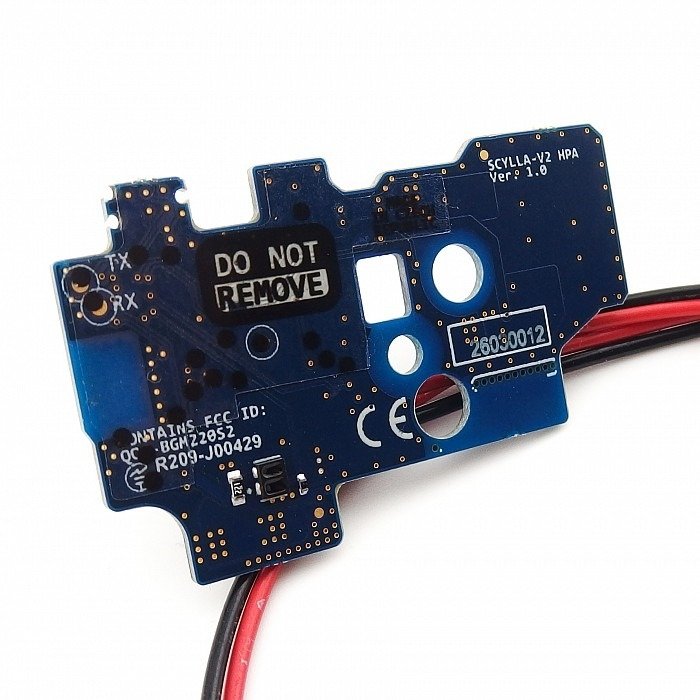

• Scylla HPA V2 Module with Wiring Harness (JST Connector)

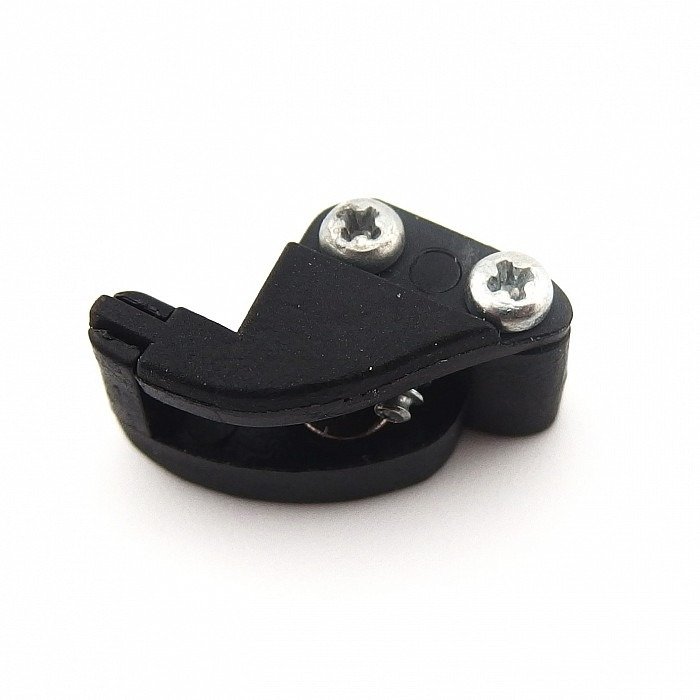

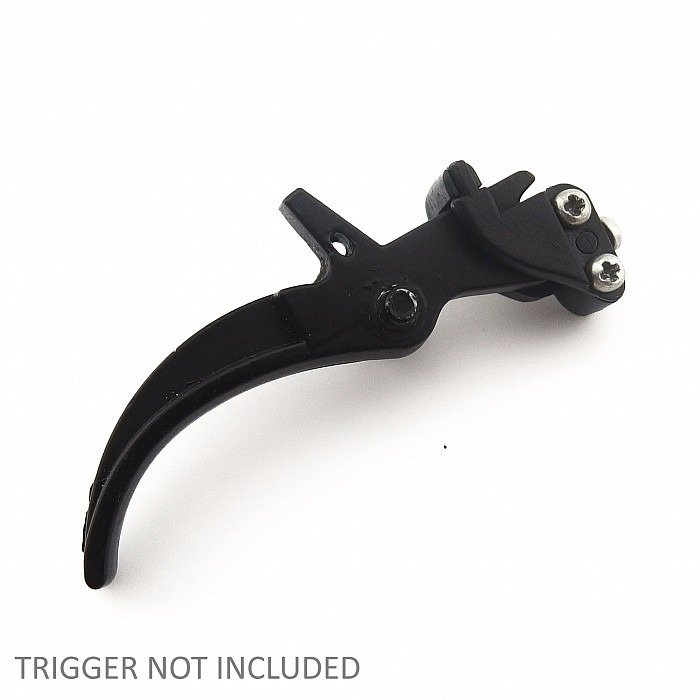

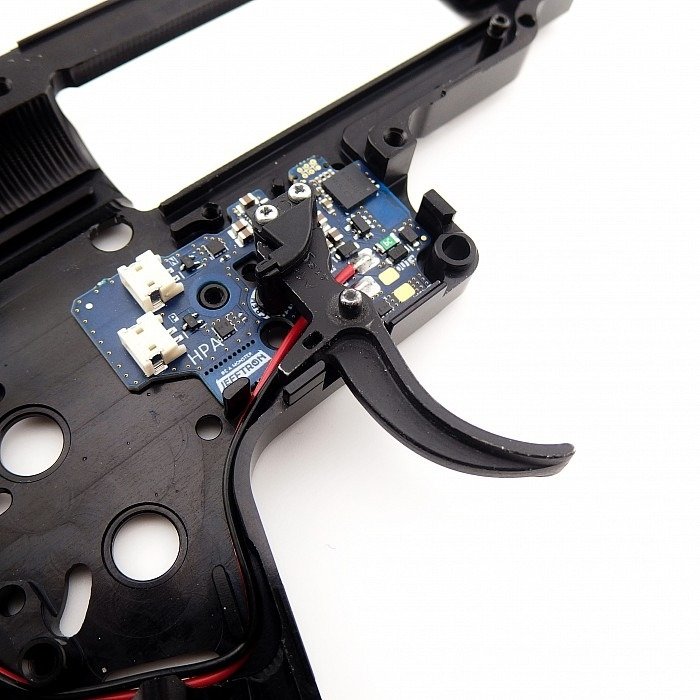

• Magnetic Trigger Adapter
• Mounting Screw
• Dog Tag Keychain
• Stickers and Markings
• Online Manual

PDF Installation Manual

A detailed installation guide in English, including illustrations, can be found in this link.
